Roller Conveyors

Customized conveyors

We offer a highly versatile range of roller conveyors designed to meet a wide variety of industrial needs.

Engineered for reliability and efficiency, these belts stand out for their robustness and adaptability to different applications, ensuring optimal and long-lasting performance.

Design – based on customer need our engineering team can design a conveyor and a control system suited to each customer need.
Manufacturing – in-house conveyor manufacturing and assembly
Installation – commisioning, ramp up and testing at customer site
Maintenance – spare parts and after-sales service
Send us a request

Standard roller conveyors – Interroll

For standard conveyors we offer Interoll roller conveyors. Interroll is a globally recognized leader in manufacturing solutions for unit-load handling systems, internal logistics, and automation.

Its product portfolio includes:

drum motors for belt conveyors
both powered and non-powered rollers for conveyor systems
control systems for roller conveyors.
Interroll conveyor catalogue

Interroll Roller Conveyor

The 24 V roller conveyor is a great solution for payloads up to 50kg. It enables to create many conveyor zones by having in 24V drum motors. Each zone is powered by drum motor that is connected to a fixed number of idlers via PolyVee belts.

Payload: 50 kg per zone
Speed: 0.1 to 1.0 m/s (at 35 kg), 0.1 to 0.8 m/s (at 50 kg)
Direction: Mono or bidirectional
Drive: 24V Drum motor (RollerDrive EC310), PolyVee belts
Rollers: Diameter 50mm, steel 1.5mm (pitch 60/90/120/150mm)
Shape: straight, curved, merge
Length: up to 4080mm, max 20 rollers per zone
Width: up to 840mm
Height: 370-2000mm, incline max. 4°
Send us a request

Check out Interroll Conveyor Catalogue

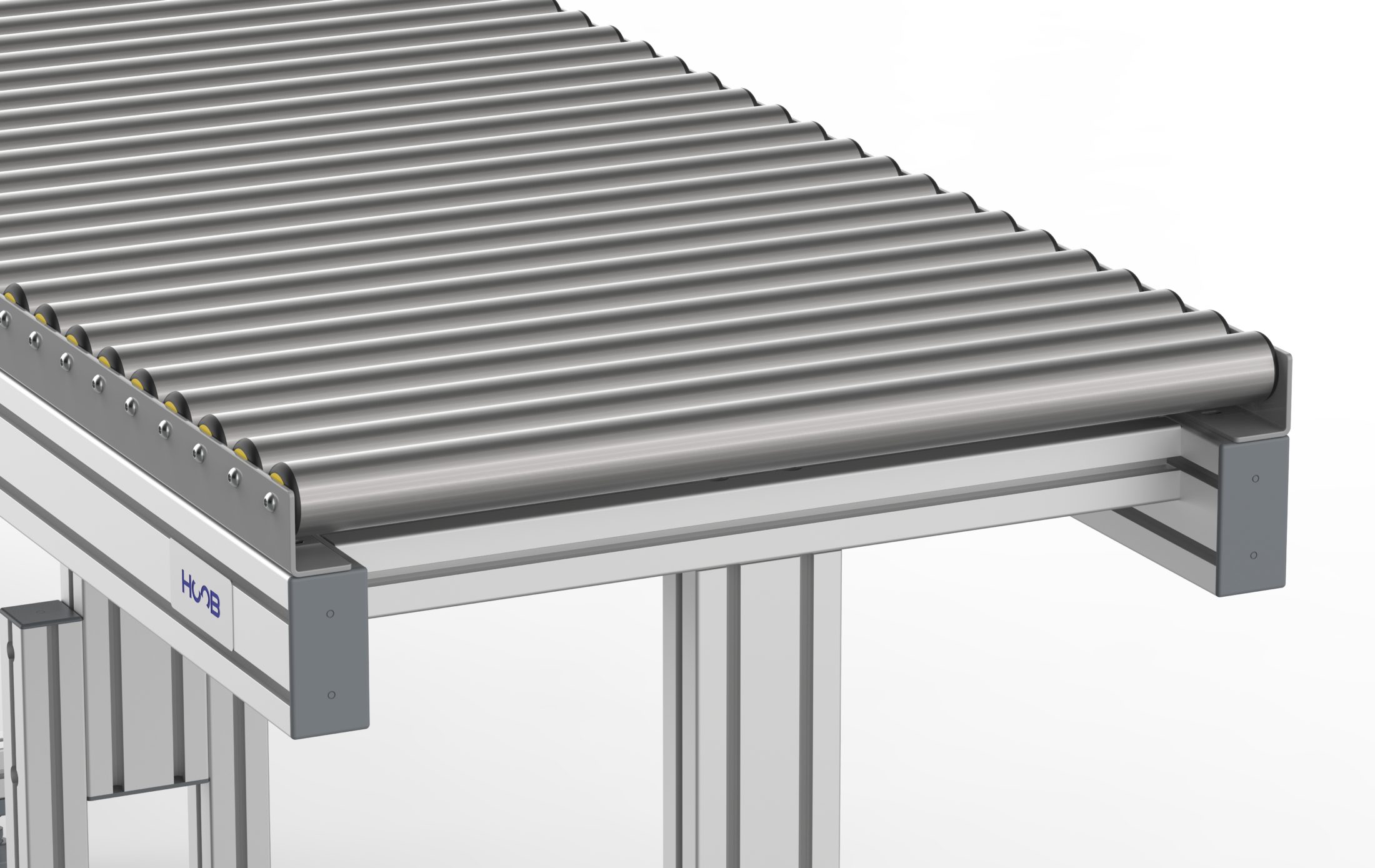

Roller Conveyor

This conveyor is based on steel structure and is designed for medium to heavy loads (up to 1500kg). Conventional roller conveyor with a chain and sprocket drive connected to 400V motor.

Payload: up to 1500kg
Speed: up to 30 m/min
Motor: 400V, 3-phase
Direction: mono or bidirectional
Rollers: Diameter 80×3 mm, pitch 197mm, steel with zinc plating
Frame: steel, painted in RAL 5022 or other tones
Width: 400-1200mm
Length: 750-6000mm
Height: 300-1200mm
Send us a request or check out Pallet Conveyor Catalogue.

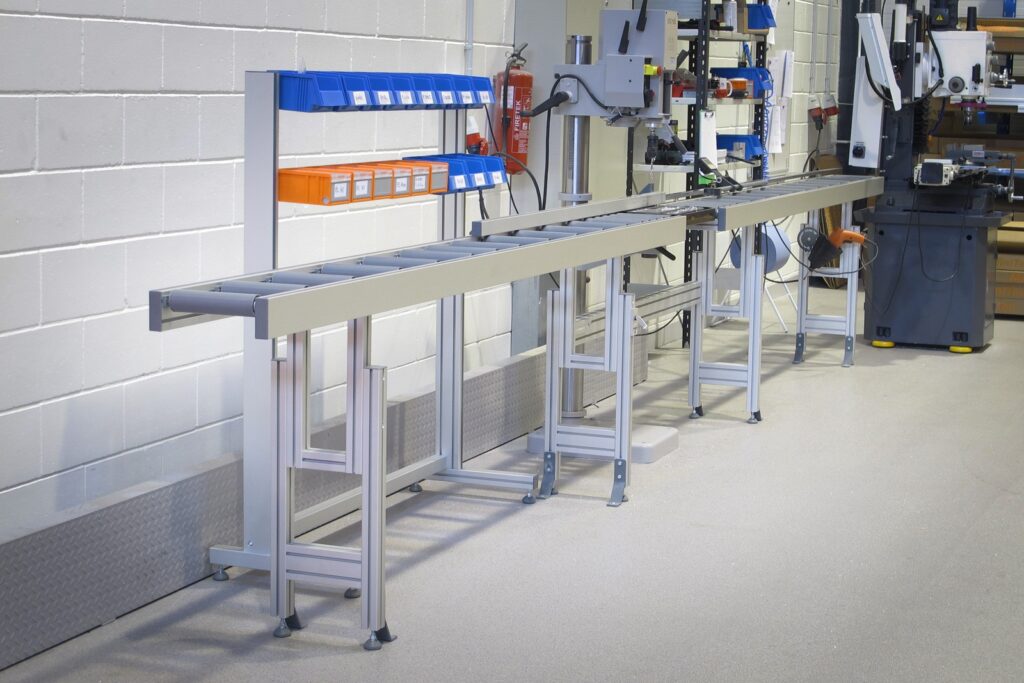

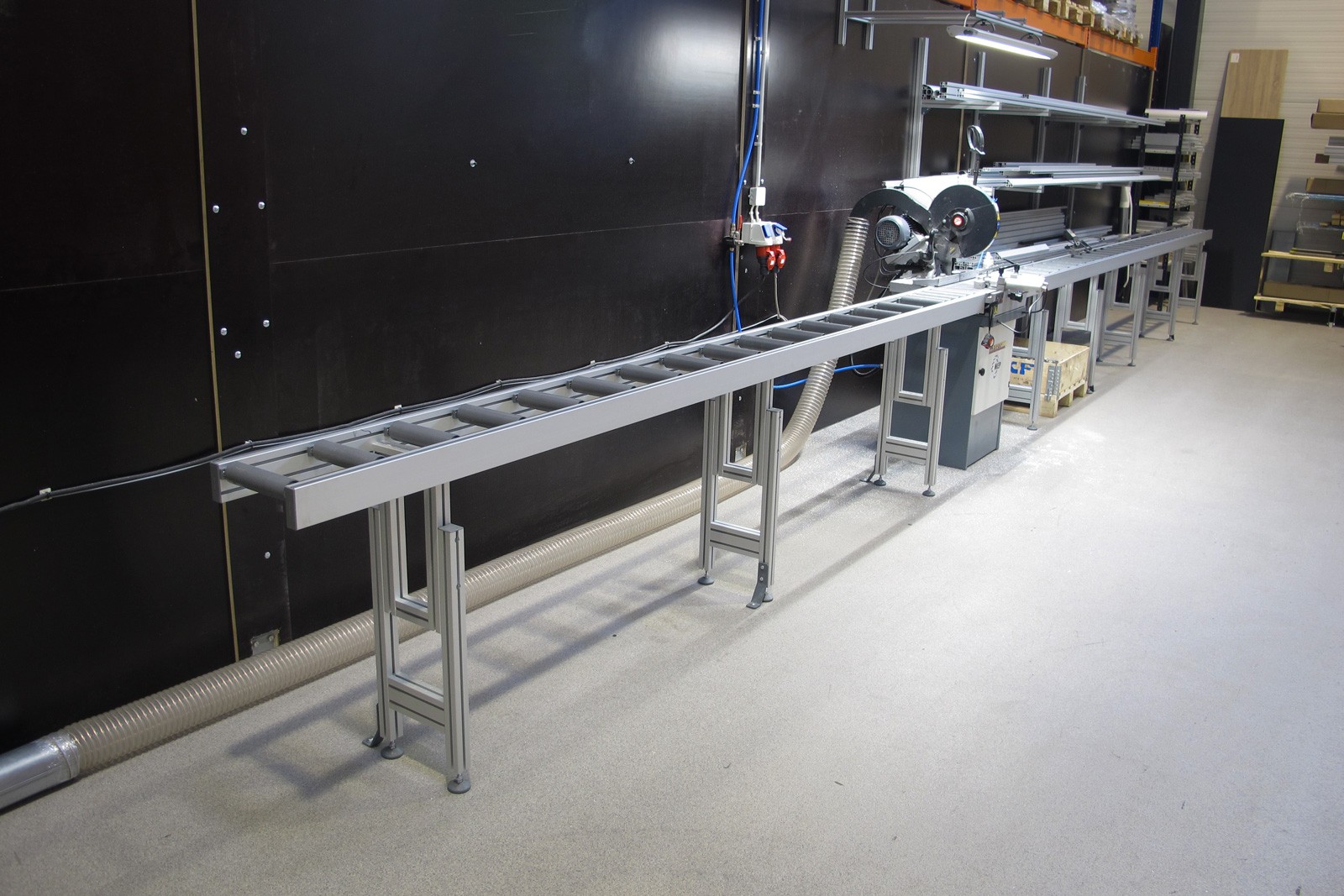

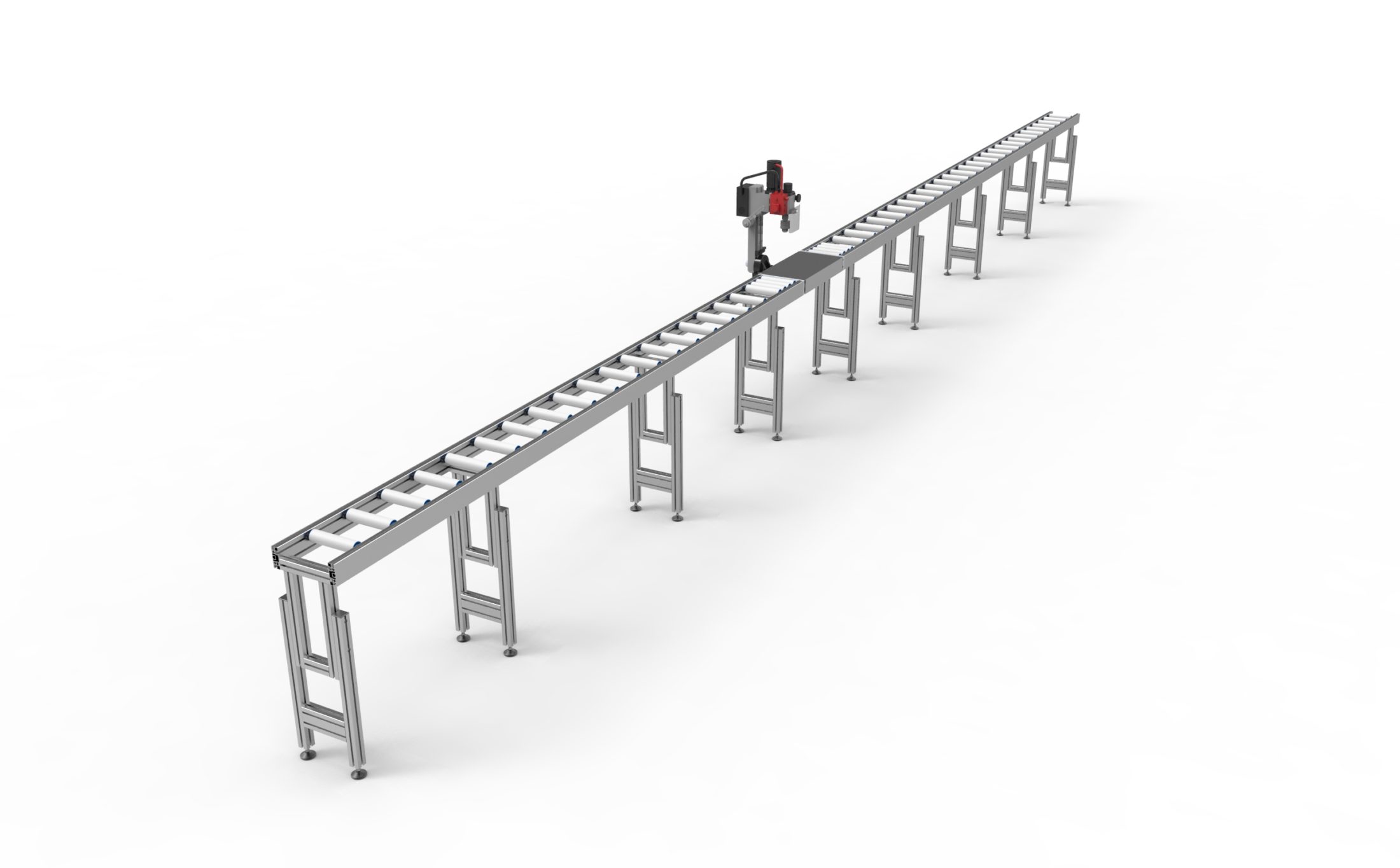

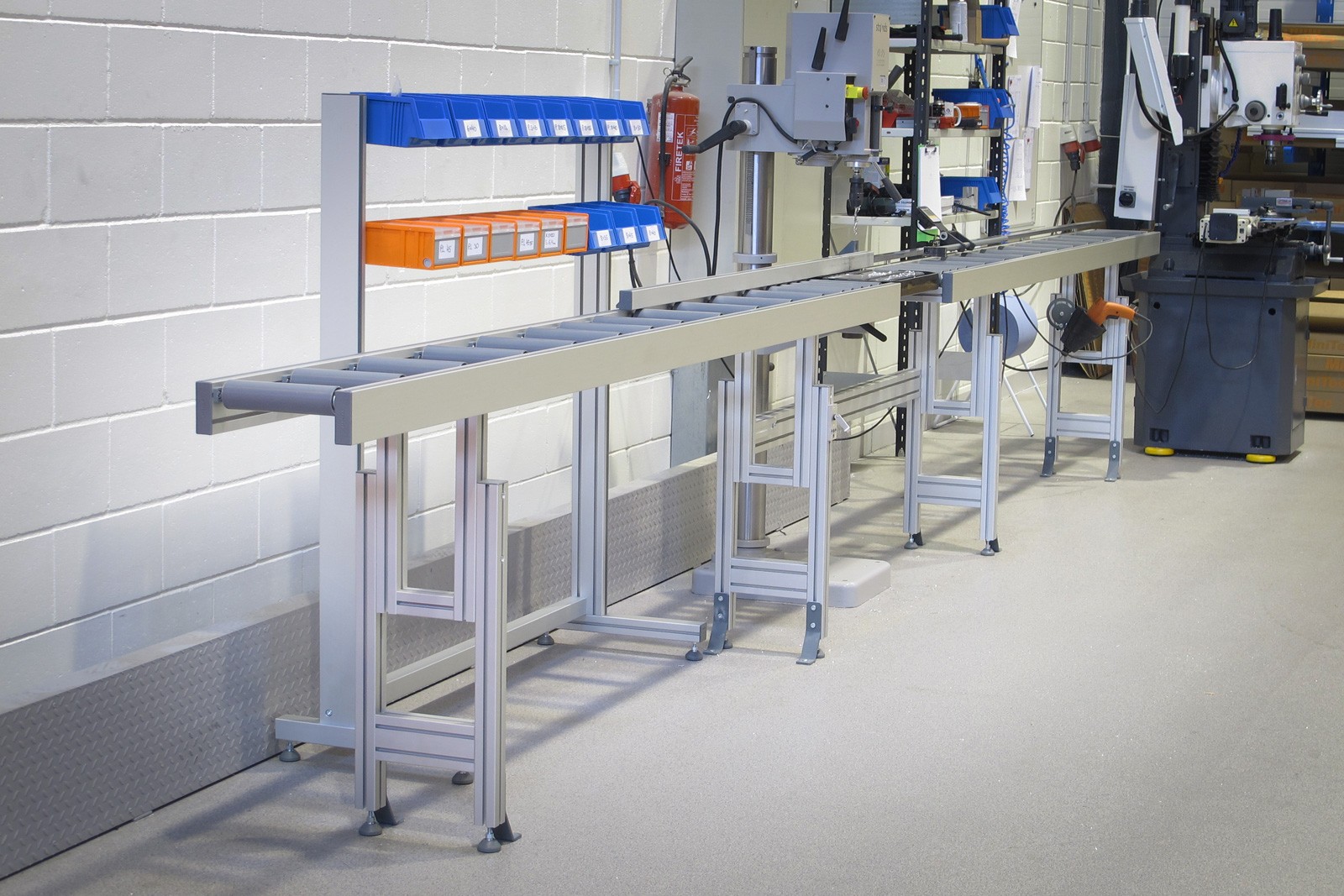

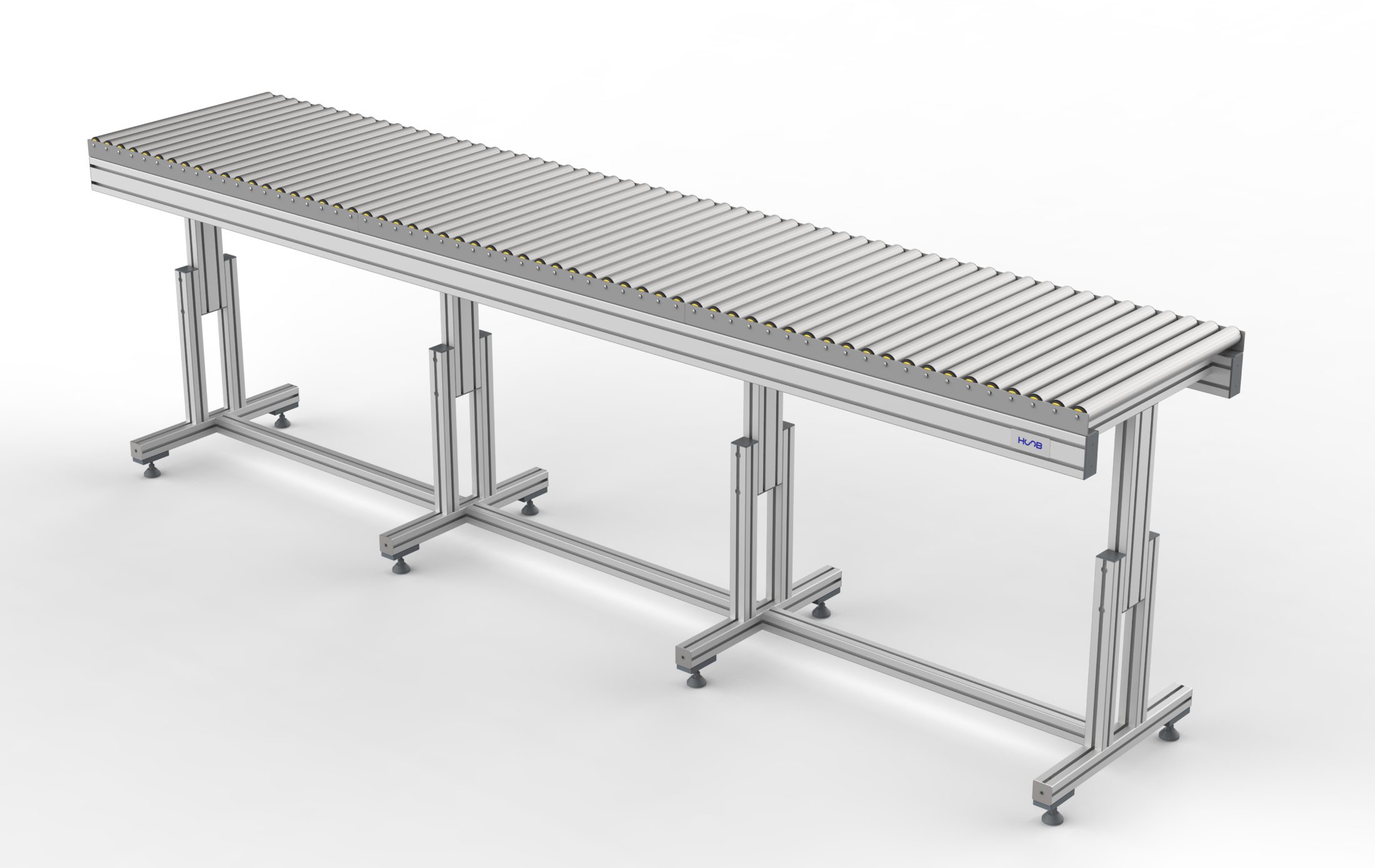

Non-driven Roller Conveyors

Combining driven and non-driven conveyors can be a cost effective solution for various application. We offer different size and shape gravity conveyors.
