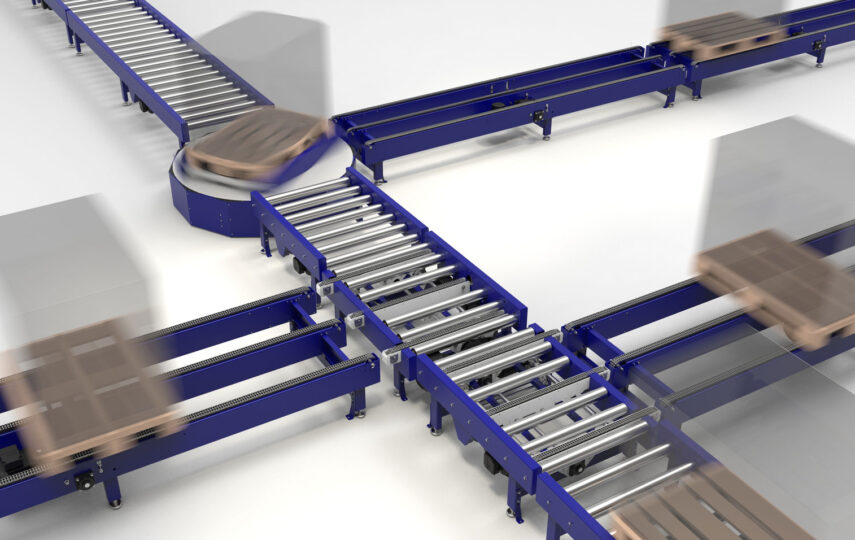

Pallet Conveyors
- Standard modules. The modules are designed to be most cost effective at standard pallet sizes (EPAL). The standard conveyor modules are aimed at EUR pallets in sizes 800x1200mm and with a payload up to 1500kg.
- Customization possibilities. It is possible to order custom sizes of the modules to match various applications and usage purposes. All the products are designed to be modular, so later changes and extensions are easy to handle.
- Space saving solution. To reduce the overall size of conveyor modules, motors are located below or within conveyor frame. The standard conveyor solution, combining various modules, is installed at a height of 400 millimetres, making it very easy to insert and remove the pallets using a forklift truck.
- Quick installation. The modules are fully pre-assembled and tested to minimize installation time. All conveyors come with height adjustable floor mounts to make the installation process easy.
- Easy maintenance. All conveyor modules are easy to maintain. Drives chain tensioning and lubrication is easily accessible. All conveyors come with a maintenance schedule and spare part list.
- Solution that lasts for years. All our conveyors have a 2-year warranty. We never leave the customer alone with any concerns that may arise during use. After-sales support and upgrades are an integral part of our service.
Pallet Roller Conveyor
The roller conveyor is designed for straight line horizontal transport of industrial pallets.
- Payload: up to 1500kg
- Speed: up to 30 m/min
- Direction: mono or bidirectional
- Rollers: Diameter 80×3 mm, pitch 197mm, steel with zinc plating
- Frame: steel, painted in RAL 5022 or other tones
- Width: 400-1200mm
- Length: 750-6000mm
- Height: 300-1200mm
- Send us a request or check out Pallet Conveyor Catalogue.
Pallet Chain Conveyor
The chain conveyor is designed for straight line horizontal transport industrial pallets. Conveyor with 2 or 3 chain runs is available.
- Payload: up to 1500kg
- Speed: up to 30 m/min
- Direction: mono or bidirectional
- Chain: 5/8″ x 3/8″
- Frame: steel, painted in RAL 5022 or other tones
- Width: 400-1200mm
- Length: 750-6000mm
- Height: 300-1200mm
- Send us a request or check out Pallet Conveyor Catalogue.
Pallet Transfer Conveyor
The pallet transfer conveyor is designed for 90° change of direction when transporting industrial pallets. Conveyor can be ordered to suit EUR (EPAL) and other industrial pallet sizes.
- Payload: up to 1500kg
- Speed: up to 30 m/min
- Direction: mono or bidirectional
- Chain: 5/8″ x 3/8″
- Rollers: Diameter 80×3 mm, pitch 197mm, steel with zinc plating
- Frame: steel, painted in RAL 5022 or other tones
- Width: 800-1200mm
- Length: 1300mm
- Height: 350-1200mm
- Send us a request or check out Pallet Conveyor Catalogue.
Pallet Turntable Conveyor
The turntable conveyor is designed for changing of direction of pallet or turning the pallet between 0° to 270° degrees.
- Payload: up to 1500kg
- Speed: up to 30 m/min, turntable speed 90° in 4 s
- Direction: mono or bidirectional
- Rollers: Diameter 80×3 mm, pitch 197mm, steel with zinc plating
- Frame: steel, painted in RAL 5022 or other tones
- Width: 800mm
- Length: 1300mm
- Height: 400-1200mm
- Send us a request or check out Pallet Conveyor Catalogue.
Pallet Conveyors Catalogue
The pallet handling product line includes the necessary modules for automated pallet movement in factories and warehouses and to provide a complete palletizing solution. We manufacture, sell, install and maintain the necessary modules and complete solutions for pallet transportation.
